Centerless Grinding Machine For Cylindrical Parts KS 360-BC

Centerless Grinding Machine For Cylindrical Parts KS 360-BC

The machine consists of

  • Basic machine type KS 360 (Table version)
  • Contact wheel 50 or 75 mm (2″ or 3″) wide
  • Grinding machine for cylindrical parts 360-BC
  • Contact wheel bearing 360-LA 56
  • Complete belt cover 360-VA
  • Colour RAL 7032 pebble gray

Special accessories:

  • Mount for sitting work: Height 650 mm
  • Mount for standing work: Height 1.000 mm
  • Extraction unit 360-VB
  • Support with integrated extraction unit

Grinding attachment for narrow radiuses, e.g. turbine blades, cast parts

with centreless grinding device for tube diameters of 6 - 180 mm and roll tracking

Technical data
3,2/4 kW
Belt dimensions
75 oder 100x4.000 mm
Speed of travel
2 - 5 m/min.

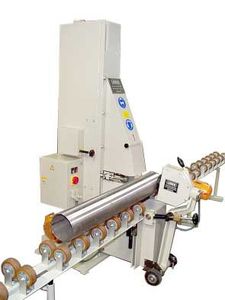

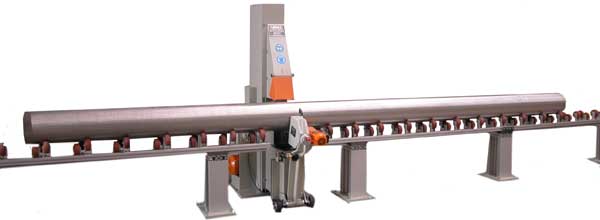

KS 100-BA special version

Overall equipment

Basic machine KS 100 including

  • pneumatically controlled pendelum unit: for constant contact pressure during the grinding process
  • Hight adjustment by means of a spindle: for a quick and easy adjustment of the tube diameter
  • pneumatical belt tensioning: for constant belt tension and a quick change of the grinding belt

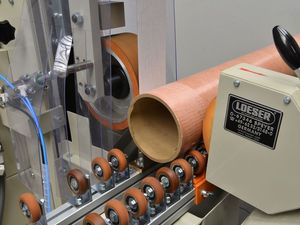

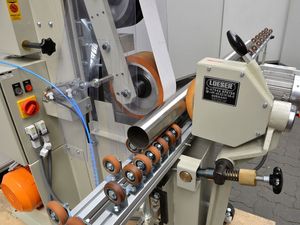

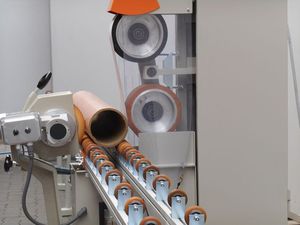

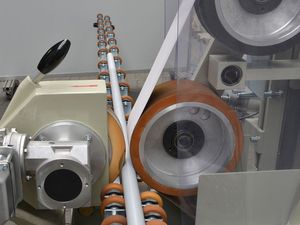

  • BA circular grinding device: for constant feed of the tubes to be ground

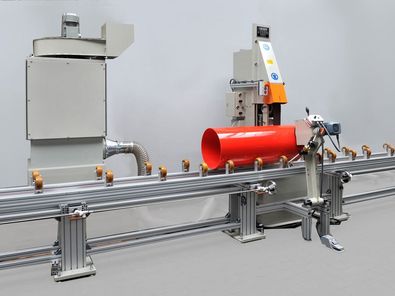

3-roll roller table

Advantage: The roller table does not need to be adjusted therefore change-over times are short when changing diameters.

Adjustmnt: The diameter is adjusted by the machine and the circular grinding device only.

Available lengths: 2, 4, 5 and 6m


material: circular-cylindrical

material: flat
